Automatic Safety Road W Beam Steel Highway Guardrail Roll Forming Machine

Roll Forming Machine Introduce

This machine has the best quality and the best price. Accurate measurement and convenient operation. We can design and manufacture special types of machines according to customers' requirements. We can provide technical guidance, production, installation, commissioning and maintenance services for all customers.

The production line adopts galvanized steel plate, color steel plate or aluminum plate as material plate. Its products are used as roof tiles and wallboard outside the building, increasing the beauty and durability of roof tiles and wallboard. This line has no limit to the processing length. You can set up multiple different data on the computer control cabinet according to your own needs. After pressing the "confirm" button, the machine can automatically generate the panel according to the set data. The surface of the formwork is smooth, and it is not easy to mark when stamping. So it's easy to install. The product conforms to the national steel structure building standard.

Features of the production line

low cost
high efficiency
Reliable operation
Low energy consumption

Technological process

Cut off the discharge of uncoiled charging die
Processing technology and deployment:
Uncoiler
Feeding platform
Mould core
Die cutting mechanism
Hydraulic station

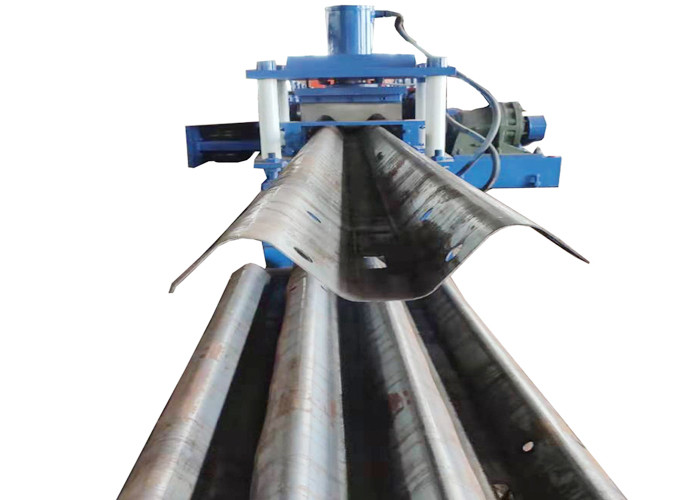

This roll forming machine is designed for highway guardrail. According to the requirements of customers, continuous forming and automatic cutting. The equipment adopts PLC control and AC frequency conversion technology to realize continuous automatic production. It is a new type of energy-saving and efficient steel roof or wall panel production equipment. The utility model has the advantages of fast forming speed, low noise, stable transmission, convenient operation, beautiful appearance, etc.

Description of Application Effects and Advantages

1. Coil Thickness: 2-4mm

2. Hydraulic power: 7.5Kw

3. Transmission way: gear box

4. Material of blad: Cr12, quenching treatment

5. Capacity of Decoiler: 5 Ton hydraulic decoiler

6. Forming Speed: 10-20m/min(not including punching time)

7. Roller Groups: 13 stations main roller

8. Roller Material: GCr15, quenching treatment

9. Roller Diameter: 180mm

10. Shaft: 45# high grade steel with quenching treatment

11. Main Motor Power: 55 Kw

Main configuration table

Technical Parameter of Highway Guardrail Roll Forming Machine
