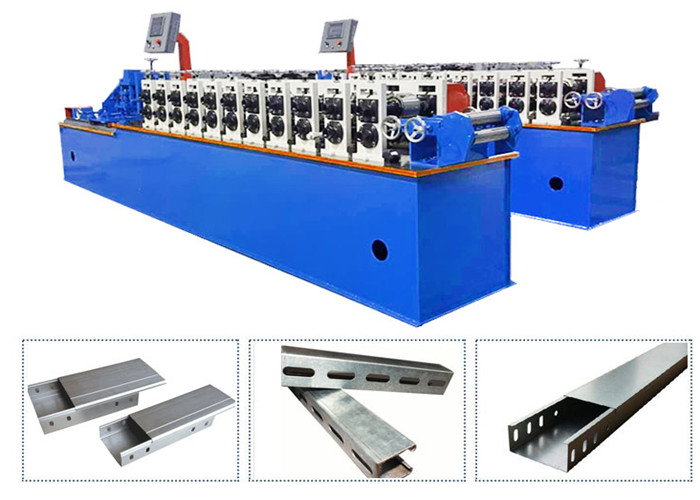

Automatic Steel Strut Channel Cable Tray Roll Forming Making with
Punching Machine
Features and Applications of Cable Tray Roll Forming Machine
The cable tray is a special type of perforated cable tray
electrical which provides good performance in commercial and light
industrial electrical applications. Cable tray galvanized refers
perforated cable tray whose surface is fabricated by using quality
raw material Pre-galvanized.
The tray offers a 45 mm cable laying depth, with widths 150 mm, 300
mm, 450 mm, 600 mm and standard lengths of 3 m.
Flexible to install, its good performance combined with a visually
appealing profile in the electrical industry. For general use
indoor, with a clean looking finish, the tray is offered in
pre-galvanized steel, however,if use outdoor that need the extra
corrosion protection,hot dip galvanized after fabrication cable
trays are available.
Sizes of Struct Channel Cable Tray
| THICKNESS(Gage) | THICKNESS(mm) | SIZE(inch) | SIZE(mm) | SPAN OF HOLES | HOLE SIZE(mm) | TYPE | SURFACE FINISH |
| 19,16,14,12 | 1.0,1.5,1.6,2.0, 2.3,2.5,2.75 | 1-5/8" X1-5/8" | 41X41 | 50mm | 14X28 | SLOTTED,SOLID | H.D.G.,PG,SS,AI,PC |
| 19,16,14,12 | 1.0,1.5,1.6,2.0, 2.3,2.5,2.75 | 1-5/8" X13/16" | 41X21 | 50mm | 14X28 | SLOTTED,SOLID | H.D.G.,PG,SS,AI,PC |
| 19,16,14,12 | 1.0,1.5,1.6,2.0, 2.3,2.5,2.75 | 1-5/8" X1-5/8" | 41X41 | 50mm | 14X28 | SLOTTED,SOLID | H.D.G.,PG,SS,AI,PC |
| 19,16,14,12 | 1.0,1.5,1.6,2.0, 2.3,2.5,2.75 | 1-5/8" X13/16" | 41X21 | 50mm | 14X28 | SLOTTED,SOLID | H.D.G.,PG,SS,AI,PC |
| 19,16,14,12 | 1.0,1.5,1.6,2.0, 2.3,2.5,2.75 | 1-5/8" X1-5/8" | 41X41 | 50mm | 14X28 | SLOTTED,SOLID | H.D.G.,PG,SS,AI,PC |
| 19,16,14,12 | 1.0,1.5,1.6,2.0, 2.3,2.5,2.75 | 1-5/8" X13/16" | 41X21 | 50mm | 14X28 | SLOTTED,SOLID | H.D.G.,PG,SS,AI,PC |
Cable Tray Roll Forming Machine Main Components and Technical
Parameters
Automatic roll forming machine List
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
output table-----------------------1set
| 1 | Material thickness | 1mm-2mm |
| 2 | Feeding width | 300-700mm(acccodring profile drawing ) |
| 3 | Effective width | 100-600mm(acccodring profile drawing) |
| 4 | Forming Steps | 22steps |
| 5 | Line Speed | 8 to 12m/min(adjustable) |
| 6 | Stand | Independent stand structure (raft structure) |
| 7 | Drive | Independent motor and moved by chain |
| 8 | Material of Roller | 40Cr, HRC45-55 |
| 9 | Shaft Diameter | 80mm |
| 10 | Main Motor Power | About 30KW |
| 11 | Voltage | 380V/50HZ/Three Phase |
| Item | Parameters | Remark |
| Suitable Material | Type | Hot rolled steel coil Galvanized steel coil | |
| Thickness | 1.8mm -2.0 mm | |
| Yield Strength | 235-300MPa | |
| Coil Width | 194mm-408mm | |
| Producing Speed | About 6 m/min | Including punching time and cutting time |
| Motor power of leveling device | 5.5 KW | |
| Motor power of servo feeding device | 5.5 KW | |
| Motor power of 110 tons punching device | 11 KW | |
| Motor power of 250 tons punching device | 22 KW | |
| Main motor power | 11KW | |
| Roller change motor power | 1.5KW*2 | |
| Hydraulic station power of Decoiler | 3KW | |
| Hydraulic station power of Cutter | 5.5KW | |
| Total power | 66.5KW | |
| Power | AC380V,50Hz,3 Phase | |
| Dimension (L×W×H, m) | About 30×4×4 | |
Production Process and Struction of Cable Tray Roll Forming Machine
Decoiler → Leveling→ Feeding→ Punch Cutting → Forming → Collection
Table
Electric Elements Brand
| No | Items | Brand |
| 1 | PLC | Delta |
| 2 | HMI | WEINVIEW |
| 3 | Electric Elements | Schneider or Delixi |
| 4 | Bearing | HRB, WZS or LYC |
| 5 | Main Motor | Wannan motor |
| 6 | Servo Motor | Delta |
Cable Tray Roll Forming Machine Details
