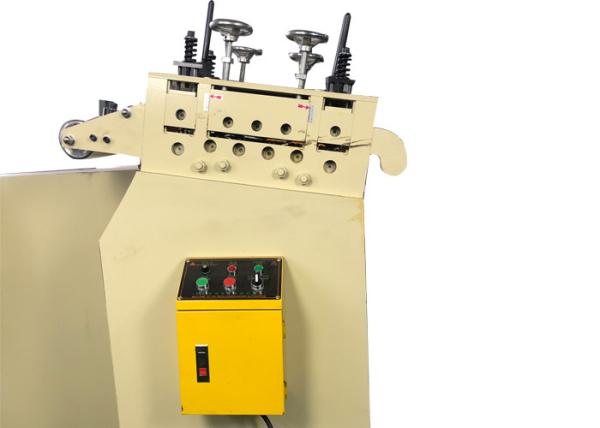

Automatic Metal Stainless Steel Coil Leveler Material Straightening Machine

Coil Leveler Straightening Machine Breif Introduction

We are a manufacturer of various types of metal sheet plate leveler straighteners. In addition to the independent plate straightening machine, we also can manufacture two in one decoiler and leveler machines. The coil straightener with high precision, high speed and special structure is a new type of equipment for high speed stamping. The quality and quantity of stamping parts are improved. For all walks of life and a variety of metal sheet forming machine to do supporting equipment.

Model Selection

Detailed of Coil Leveler Straightening Machine

Leveler Head
1. The head is designed with 19 parallel rollers (up 9 down 10).
2. Four point fine adjustment is more suitable for processing high-precision products. Input and output materials adopt four point independent pressure to adjust the feed wheel pressure, which can effectively prevent material deviation and deformation.
3. The supporting rollers are all non powered galvanized rollers, with comprehensive materials, wear-resistant surface, mechanical bearings, more flexible rotation and durable use.
4. It is the most traditional handwheel with cast iron handwheel and electroplated surface.
5. There is a protective cover with windows on both sides of the transmission part for easy observation.

Leveling Wheel
1. The leveling wheel is made of solid bearing steel, medium frequency
After thickening and electroplating treatment, the surface hardness is not low
More durable than hrc58.
2. GCr15 is used to forge round steel, after preheating (spheroidizing annealing),
Then grinding, milling, 1 medium frequency treatment, rough grinding
Cold stable, then fine grinding, finally electroplating.
Maximum guarantee 1 accuracy, concentricity, finish and hardness,
The service life of the straightening roller is prolonged.

Driving Gear
Gear processing technology includes: gear rough processing - gear surface processing - gear surface heat treatment - gear surface fine grinding. The raw material parts are mainly made of forgings and improved after normalizing. Machining type, free cutting, according to the gear design drawing, rough machining first, then semi finish machining
During processing, turning, rolling and tooth inlaying make the gear basically formed; the performance meets the requirements of drawing design, and the final finishing, finishing benchmark and finishing tooth profile. After the above treatment, the gear grade of our company can reach grade 6, with high wear resistance, high strength and long service life.

Power Section
1. The vertical gearbox with 80 type worm and worm is used to convert the speed converter of the gear into the required swing number (motor), so that the swing number (motor) can be reduced to the required swing number, so as to obtain the mechanism with larger torque.
2. The vertical motor is adopted, with small vibration and low noise. The fixed rotor part adopts pure copper coil, with a service life of 1 times that of ordinary coil. Both ends are equipped with ball bearings, with small friction and low temperature.

Electrical Control
1. It adopts silver alloy relay, all copper coil, flame-retardant safety base, durable.
2. Safety protection circuit delay relay, silver alloy contact, multi piece and dial are adopted to meet different delay range
3. The switch has sliding contact and self-cleaning function. The normally open contact and normally closed contact adopt point open edge structure, which can work on the edge. It is equipped with anti rotation positioning and anti loose mounting gasket.
4. It adopts self compound plane button, light force, moderate key stroke, building block combination structure, and the contact adopts ketone base composite point, which has high conductivity and high load current, with a life of 1 million times.

Jiangsu Co-effort Mechanical & Electrical Technology Co., Ltd. was founded in 2017, we mainly committed to the development and production of cold roll forming machines. Since we established, we always been based on the concept of "quality-oriented-technological innovation". From the perspective of globalization, standing at the top of the industry, seized development opportunities and market space, made every effort to build a well-known brand in the cold roll forming industry of technological innovation.

Our company can provide advanced cold roll forming machine with multi-material, multi-thickness and multi-shape, and can provide flexible system solutions for other production processes such as welding, punching and automatic packaging in cold roll forming process.

We have profiler and roughness testing machine, special testing equipment for forming machine, hardness tester and other testing equipment. At present, we have provided high-demand services with automobile, construction, furniture, warehousing and other industries as well as domestic and foreign enterprises.
