Heavy Duty Ball Bearing Drawer Slide Rail Roll Forming Machine
Breif Introduction of Drawer Slide Rail Roll Forming Machine
1. This machine integrates many years of design and manufacturing
experience of our factory, advanced design concept and processing
technology.
2. Adopt numerical control equipment processing, improve roller
size accuracy.
3. Because the design is reasonable and accurate, and the
processing accuracy is high, the equipment stability is good, and
the products produced are stable and high precision.
4. The use of punch saves electricity, improves production
efficiency and accurate length positioning.
5. Overall automatic control, convenient operation and high
efficiency.
6. Punching can be one-time punching with cutting off pressure
type.
Main Components of Roll Forming Machine
| 3 tons passive de-coiler | 1 set |
| roll forming machine | 1 set |
| Feeding and leveling device | 1 set |
| Hydraulic cutting device | 1 unit |
| Hydraulic station | 1 unit |
| PLC control box | 1 unit |
| Safety cover | 1 unit |
| Out table | 2 units |
Production Process of Roll Forming Machine
Material Coil – De-coiling – Feeding – Roll Forming – Straightening
– Hydraulic Punching & Cutting-Off – Finished Slide
Technical Parameters of Drawer Slide Rail Roll Forming Machine
| 1. | Power Requirement
| Type | 380v/3ph/50hz | |
| | Main Motor power | 5.5kw | |
| | Cutter power | 4kw+1.5kw | |
| 2. | Forming speed(m/min) | 40-45m/min max | Not include the time of cutting |
| 3. | Forming stations | 12stations | |
| 5. | Material of rollers | CR12 | |
| 6. | Thickness of structure | 30mm | |
| 7 | Forming shaft diameter(mm) | 50 | |
| 8 | Drive | Gear box | |
| 9 | Type of cutting | Hydraulic cutting | |
| 10. | Control system | PLC xinjie | |
| 11. | Install dimension(depend on the final design) | 4.8m×0.6m×1.2m | Without panel length |
| 12. | Total weight (Approx) | 2.3T | Depend on final design |
| 13. | Screen | Text screen /touch screen | |
| NO | Name | Unit | Qty | |
| 1 | Man-made decoiler | set | 2 | - Max width 300mm
- Inner diameter -460-510mm
- Max loading capacity 1000kg
- Manual operating type manual expansion to tighten the coil
- Break down drive whole line stop while decoiler idle
|
| 2 | Feeding Table | set | 1 | |
| 3. | Forming Rollers | set | 1 | - Forming Station 16 nos
- Forming Rollers material Cr12
- Forming Rollers hard treatment HRC 58-60
- Shaft of roller Diameter 40mm
- Shaft material 40Cr,heat treatment, refine grinded
- Machine frame: steel welding
- Main sidewall thickness 25mm
- Machine driven by universal joints via gearbox
- Roll forming motor 5.5kw with frequency inverter controller
- Gearbox RV worm gearbox
|
| 4. | Hydraulic cutting with hole punching | set | 1 | - Hydraulic pump stand 1 set
- Hydraulic Components taiwanese
- Hydraulic System discharging protection with wind cooler
- Edge cutting 2 sets both ends
- Middle joint hole punching 23sets/152.4mm
- Fire testing hole 2 sets both ends
- Mould standard SKD-11 Steel Japanese
- Mould frame&plate S45C
- Mould pin SKH-9 steel Japanese
- All mould treatment By slow-feeding Nc wire cutting
|
| 5. | Profile Discharger | set | 1 | - Driven machinical Auto Head
- Operation Full automatic along with forming machine
|
| 6. | Electric Control system | set | 1 | - Frequency converter Silin ,Taiwanese
- PLC Fatek ,Taiwanese
- Touch screen weinview Taiwanese
- Profile length cutting forming machine stops then cut
- Operational controller: touch screen knob switch emg
Brake down and so on (6)Power supplier 380V 50Hz 3phase |

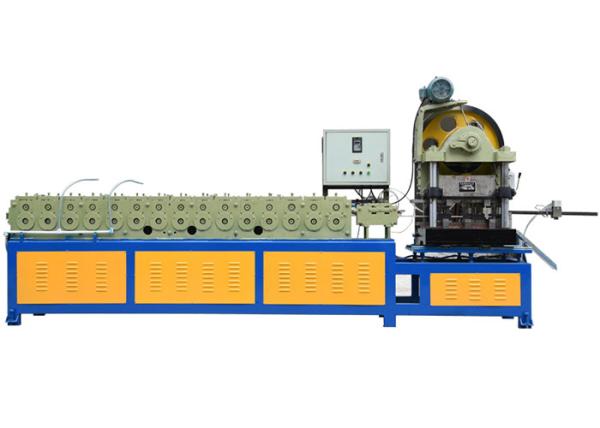

Ball Bearing Drawer Slide Rail Roll Forming Machine Photos
